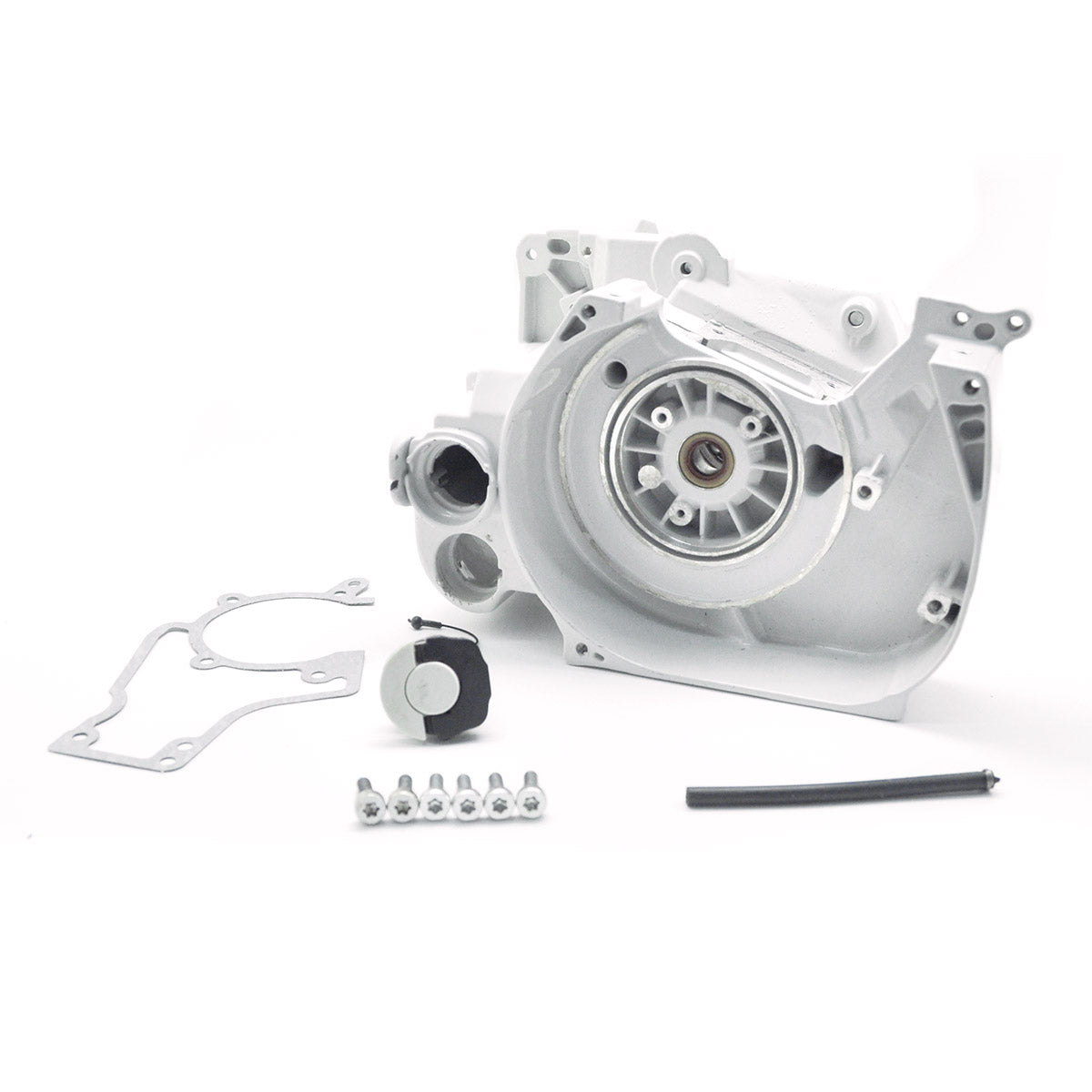

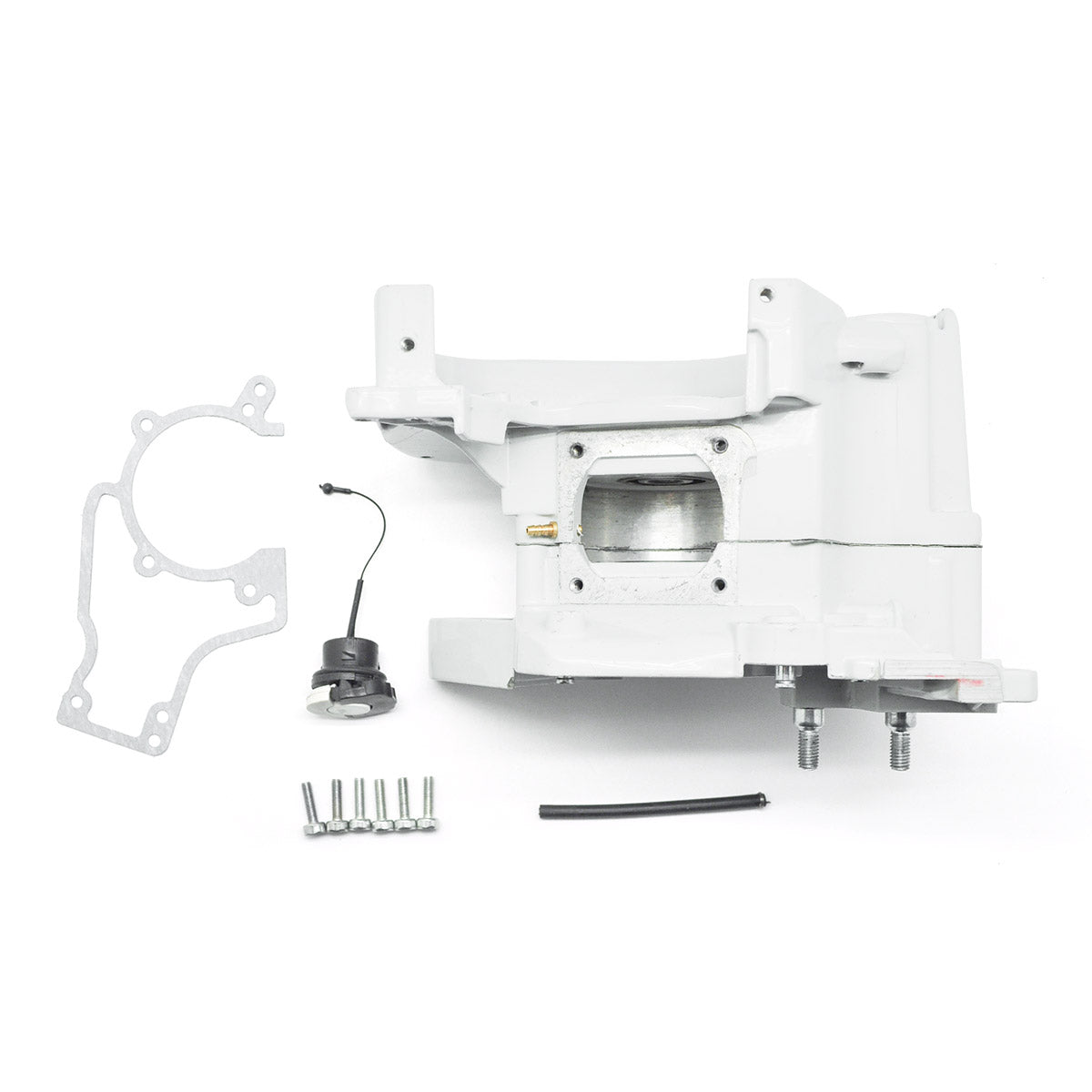

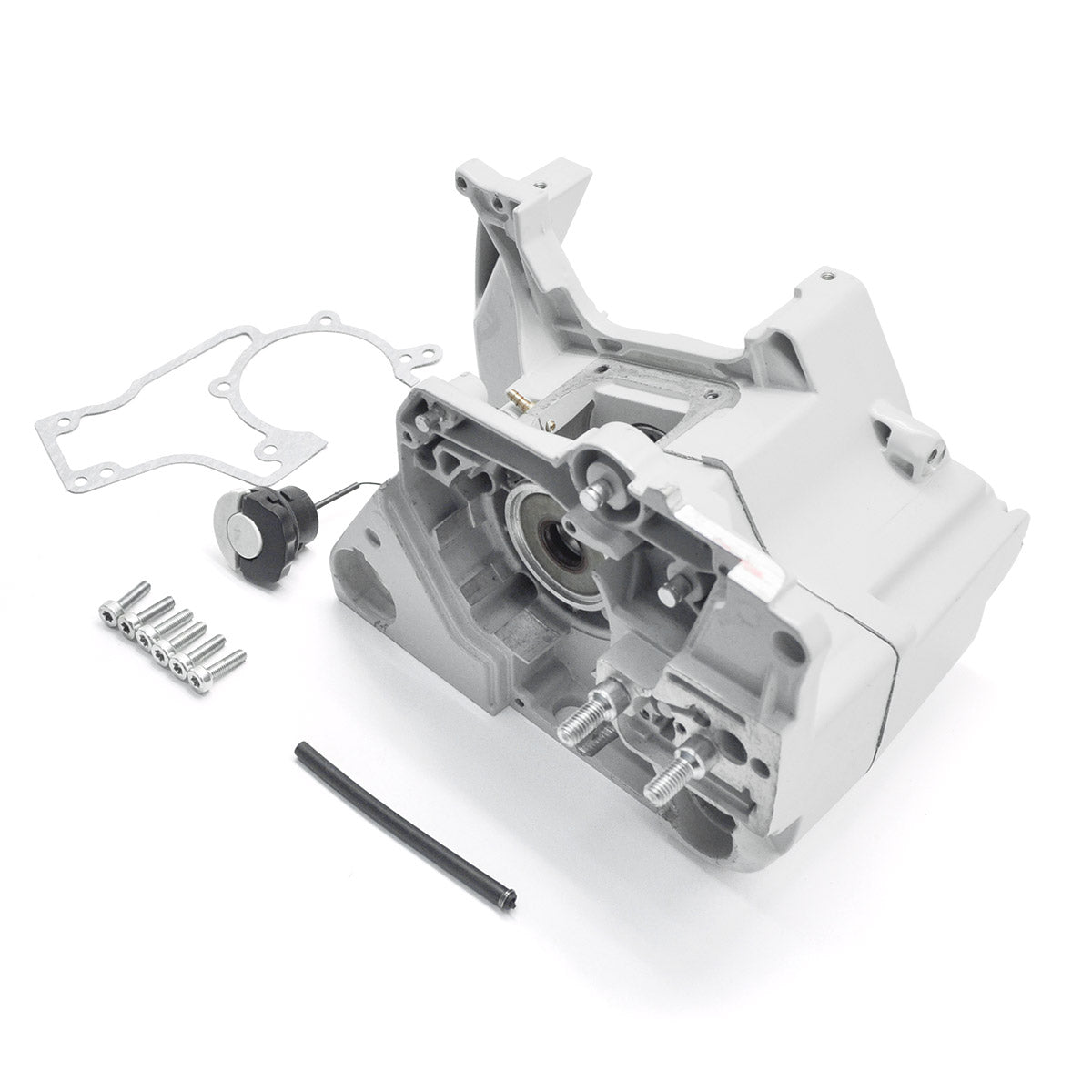

Crankcase Assy Fit For Stihl MS381 Chainsaw OEM 1119 020 1204
Key Features
54.5cc Gold-displacement engine, perfect for various working conditions.
Safety Assurance
26"/65cm max cutting diameter, tackles large jobs effortlessly.
Upgrade Highlights
Optimized CDI ignition system
Whether facing freezing temperatures or scorching heat, it delivers dependable, consistent power to keep you working without interruption.
Effortless cold start
Starts in just 3–5 pulls even in low temperatures, helping you save time and keep productivity up on chilly mornings.
Quick-detach air filter cover
Upgraded with a quick-release structure and quick-detach air filter cover for easier cleaning and maintenance
Speed-Automatic oil pump
The speed-automatic oil pump delivers adaptive chain lubrication in real time, ensuring smooth operation with reduced friction and effective overheat protection. It maintains optimal cutting performance and greatly extends the service life of the chain and guide bar.
FAQS
Cold Start
- Add fuel (fuel mixing ratio: 25:1).
- Close the choke. If the machine is equipped with a primer bulb, press it 3–5 times until the bulb is filled with fuel.
- Pull the starter rope 3–5 times.
- After hearing two “coughing” sounds,
- Open the choke.
- Pull the starter rope to start the machine.
Hot Start
- Open the choke.
- Pull the starter rope to start the machine.
The issue may be caused by an incorrect fuel mixture, spark plug problems, or a clogged carburetor.
- Check whether the fuel mixing ratio is 25:1. If not, adjust the fuel mixture to 25:1.
- Check whether the fuel line is bent or blocked.
- Check whether the spark plug is sparking properly.
- Check whether the engine is flooded.
- Check whether there is a carburetor malfunction.
- Confirm whether the spark plug is producing a spark: Remove the spark plug, connect it to the ignition coil, and place the spark plug electrode in contact with a metal part of the machine. Pull the starter rope and observe whether the spark plug produces a spark during starting.
- Check the electrode gap. The correct gap is 0.5–0.7 mm (approximately the thickness of a credit card).
- Clean oil residue and debris from the surface of the spark plug.
- If the engine still does not start after completing the above steps, replace the spark plug with a new one.
- Check whether the high-voltage wire (ignition coil lead) is damaged.
- Remove the spark plug.
- Turn the machine upside down.
- Pull the starter rope.
- Drain the excess fuel from the cylinder.
- Remove the air filter.
- Use an air blower to remove dust or debris from the air filter.
- If it cannot be cleaned or has been used for a long time, replace the air filter.
