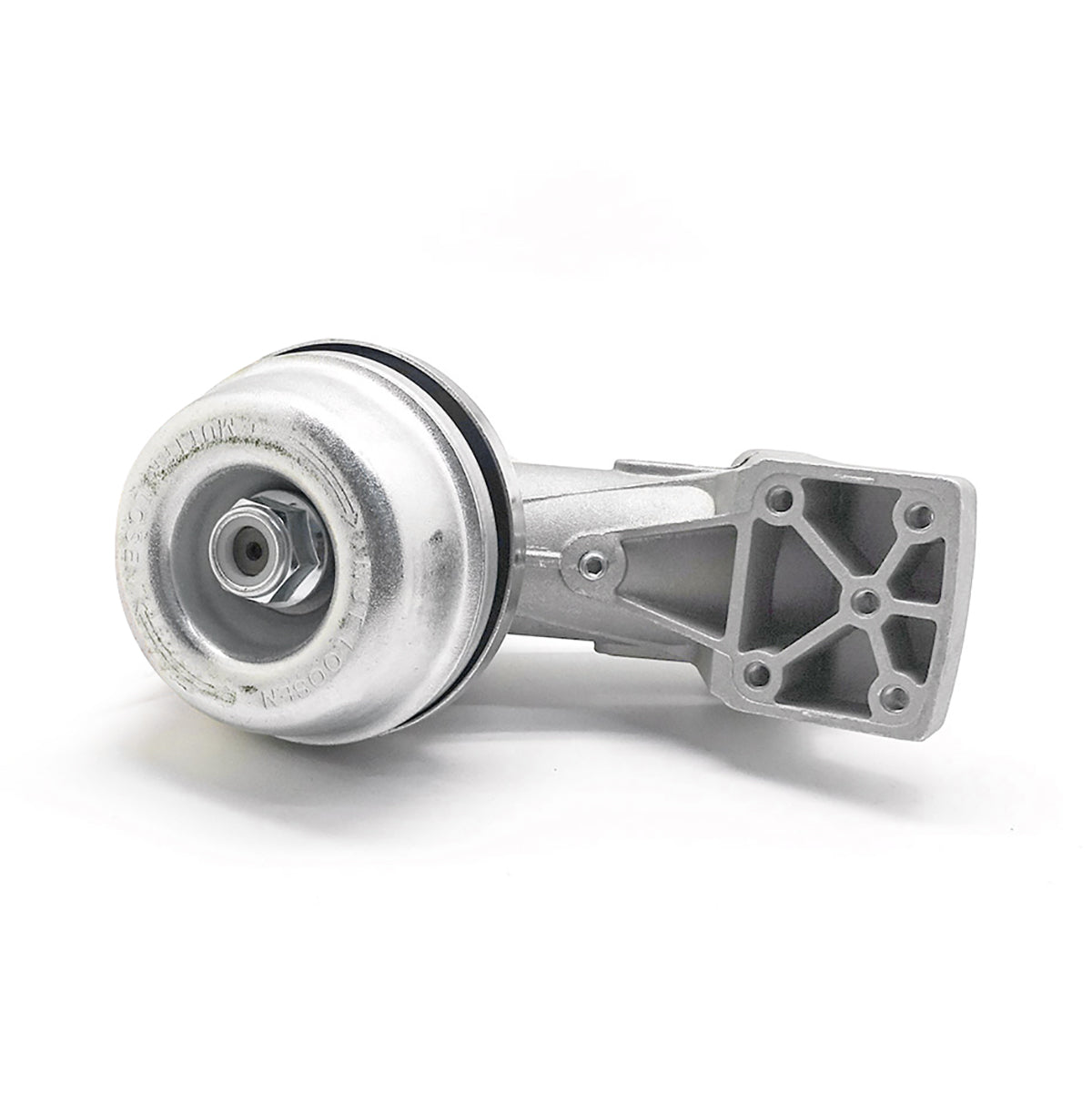

Gear Head Gear Box Assy Fit For STIHL FS160 FS220 FS280 FS300 FS310 FS350 FS400 FS450 FS480 OEM#4128 640 0101

Price:
Sale price$47.30
Multiple Secure Payment Options
Quality Assurance
Free Delivery within the U.S
Easy Returns & Refunds
Hassle-Free Warranty
Professional Assistance
Secure Payments
1set Drive Pinion Drive Shaft
1pc Grooved Ball Bearing 6001-Z OEM:9503  003 5180
1pc Grooved Ball Bearing 6000,OEM:9503 003 0100
1pc Grooved Ball Bearing 6202-2RS OEM:9503 003 7450
1pc Circlip 12x1 , OEM: 94556211130
1pc Guard Ring, OEM:4128 717 2704
1pc Thrust Plate, OEM:4128 710 3800
1pc Guard Washer, OEM:4116 717 2800
1pc Thrust Washer, OEM:4128 713 1600
1pc Guard Washer, OEM:4119 717 2800
1pc Rider plate,OEM:4119 713 3100
2pcs Pan head self-tapping screw
IS-D6x28,OEM:90754784712"
2pcs Washer 6.4x12x1.6,OEM:9291 021 0140
3pcs Spline Screw IS-M5x10, OEM:90223990950
1pc Collar nut M12x1.5 l/h thread, OEM: 41196427600
1pc Stud, OEM:00009531001
1pc Screw plug,OEM:41197136500


1Stück Antriebsritzel Abtriebswelle
1Stück Kugellager 6001-Z OEM:9503  003 5180
1Stück Kugellager 6000,OEM:9503 003 0100
1Stück Kugellager 6202-2RS OEM:9503 003 7450
1Stück Sicherungsring 12x1 , OEM: 94556211130
1Stück Schutzring, OEM:4128 717 2704
1Stück Druckteller, OEM:4128 710 3800
1Stück Schutzscheibe, OEM:4116 717 2800
1Stück Druckscheibe, OEM:4128 713 1600
1Stück Schutzscheibe, OEM:4119 717 2800
1Stück Laufteller,OEM:4119 713 3100
2Stück Schraube IS-D6x28,OEM:90754784712
2Stück Scheibe 6.4x12x1.6,OEM:9291 021 0140
3Stück Schraube IS-M5x10, OEM:90223990950
1Stück Bundsichermutter M12x1.5 l/h thread, OEM: 41196427600
1Stück Stiftschraube, OEM:00009531001
1Stück Verschlussschraube,OEM:41197136500




FAQS

Cold Start
  1. Add fuel (fuel mixing ratio: 25:1).
  2. Close the choke. If the machine is equipped with a primer bulb, press it 3–5 times until the bulb is filled with fuel.
  3. Pull the starter rope 3–5 times.
  4. After hearing two “coughing” sounds,
  5. Open the choke.
  6. Pull the starter rope to start the machine.
Hot Start
  1. Open the choke.
  2. Pull the starter rope to start the machine.

The issue may be caused by an incorrect fuel mixture, spark plug problems, or a clogged carburetor.

  1. Check whether the fuel mixing ratio is 25:1. If not, adjust the fuel mixture to 25:1.
  2. Check whether the fuel line is bent or blocked.
  3. Check whether the spark plug is sparking properly.
  4. Check whether the engine is flooded.
  5. Check whether there is a carburetor malfunction.
  1. Confirm whether the spark plug is producing a spark: Remove the spark plug, connect it to the ignition coil, and place the spark plug electrode in contact with a metal part of the machine. Pull the starter rope and observe whether the spark plug produces a spark during starting.
  2. Check the electrode gap. The correct gap is 0.5–0.7 mm (approximately the thickness of a credit card).
  3. Clean oil residue and debris from the surface of the spark plug.
  4. If the engine still does not start after completing the above steps, replace the spark plug with a new one.
  5. Check whether the high-voltage wire (ignition coil lead) is damaged.
  1. Remove the spark plug.
  2. Turn the machine upside down.
  3. Pull the starter rope.
  4. Drain the excess fuel from the cylinder.
  1. Remove the air filter.
  2. Use an air blower to remove dust or debris from the air filter.
  3. If it cannot be cleaned or has been used for a long time, replace the air filter.
