NEO-TEC 33ft 1/2 Inch Retractable Garden Hose Reel Wall Mount 9 Pattern Nozzle G101210
Key Features

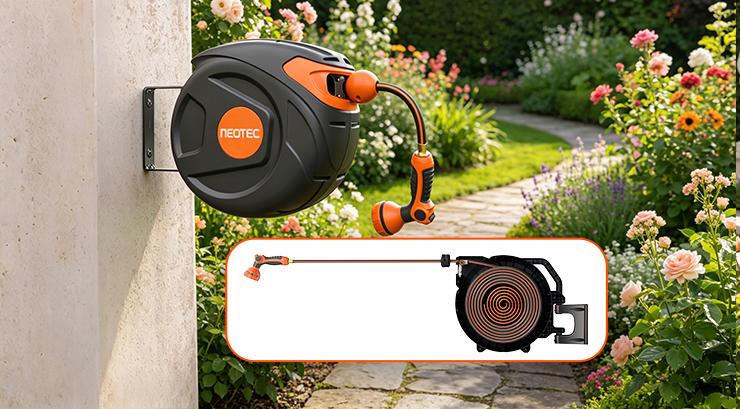

Any Length Lock & Slow Safe Auto Rewind
Brass Fittings & Hybrid Hose, 200PSI Leak-Proof
180° Swivel Bracket & UV Resistant Housing
Upgrade Highlights
Built-In Pulley Guide Prevents Hose Kinking
Integrated Pulley Optimizes Hose Route, Greatly Cuts Twisting And Keeps Consistent Strong Water Pressure.

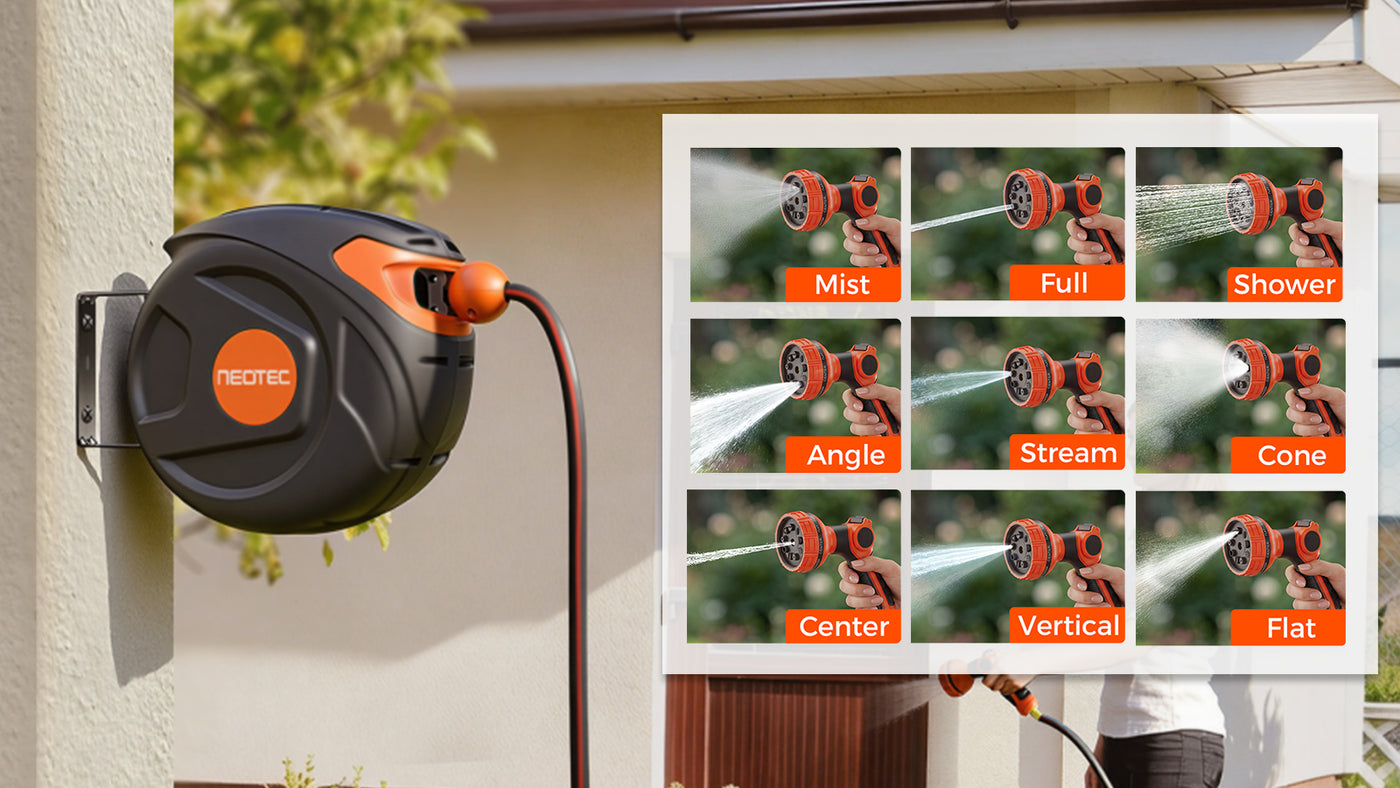

Ergonomic Non-Slip 9-Pattern Spray Nozzle
Comfort Anti-Slip Grip Nozzle Comes With 9 Adjustable Water Settings For Diverse Outdoor Cleaning Jobs.

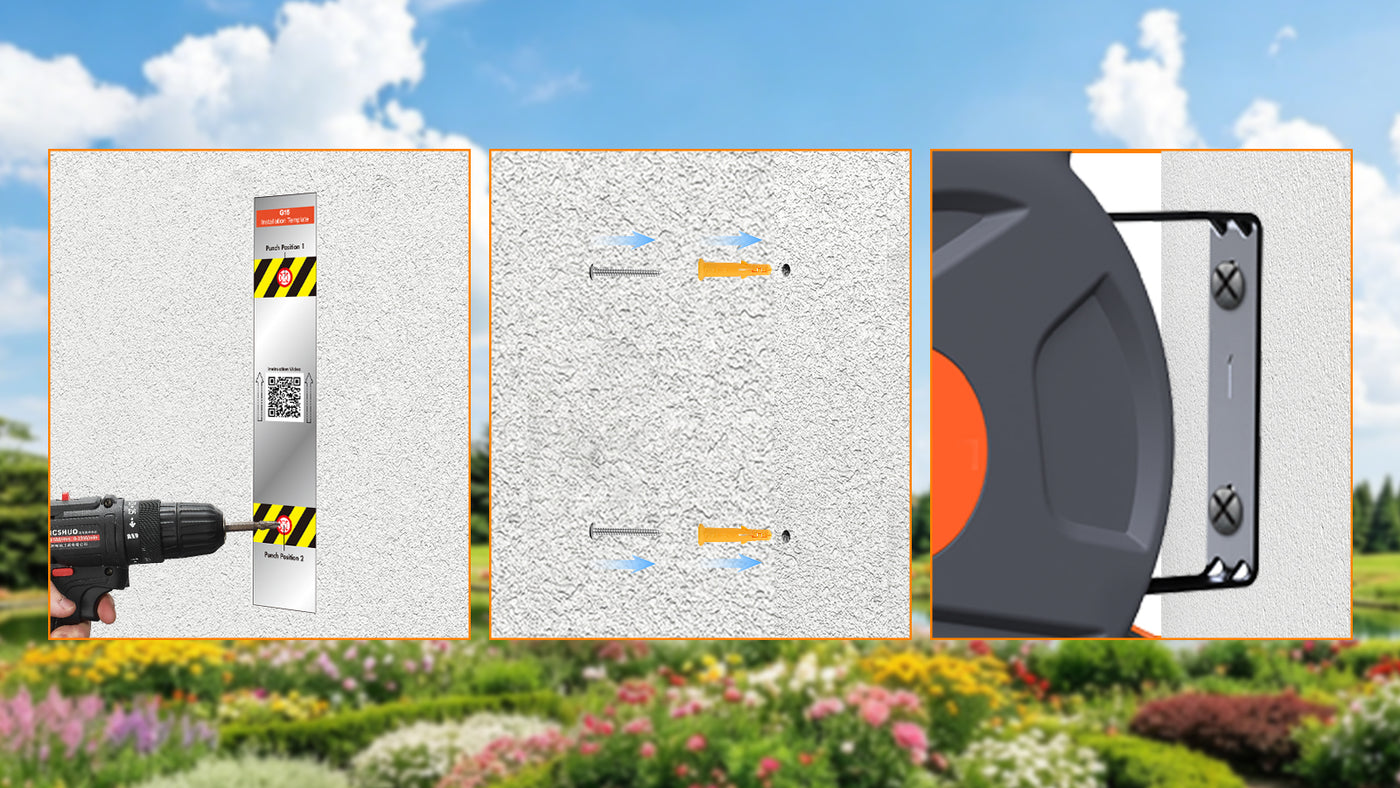

Full Mounting Hardware Included For Quick Install
All Installation Parts Are Included, Finish Wall Mount In Minutes Without Extra Accessories.
1-Year Warranty & Wide Application Scenarios
Backed By 1-Year After-Sales Service, Ideal For Yard Watering, Car Wash, Pet Bath And Patio Cleaning.
Product Comparison
Discover More Difference59cc
Displacement
56.5cc
Displacement
54.5cc
Displacement
54.5cc
Displacement
2.9kW/ 3.9HP
Max Power
2.6kW/ 3.5HP
Max Power
2.4kW/ 3.2HP
Max Power
2.2kW/ 3.0HP
Max Power
30â/75cm
Max Cutting Diameter
26â/65cm
Max Cutting Diameter
26â/65cm
Max Cutting Diameter
22â/55cm
Max Cutting Diameter
20â , 22â , 24â
Recommended Guide Bar Size
18â , 20â , 22â
Recommended Guide Bar Size
18â , 20â , 22â
Recommended Guide Bar Size
18â , 20â
Recommended Guide Bar Size
7Tx 0.325
Sprocket Type
7Tx 0.325
Sprocket Type
7Tx 0.325
Sprocket Type
7Tx 0.325
Sprocket Type
6 Month Consumer / 3 Month Commercial
Warranty
6 Month Consumer / 3 Month Commercial
Warranty
6 Month Consumer / 3 Month Commercial
Warranty
6 Month Consumer / 3 Month Commercial
Warranty
FAQS
Cold Start
- Add fuel (fuel mixing ratio: 25:1).
- Close the choke. If the machine is equipped with a primer bulb, press it 3â5 times until the bulb is filled with fuel.
- Pull the starter rope 3â5 times.
- After hearing two âcoughingâ sounds,
- Open the choke.
- Pull the starter rope to start the machine.
Hot Start
- Open the choke.
- Pull the starter rope to start the machine.
The issue may be caused by an incorrect fuel mixture, spark plug problems, or a clogged carburetor.
- Check whether the fuel mixing ratio is 25:1. If not, adjust the fuel mixture to 25:1.
- Check whether the fuel line is bent or blocked.
- Check whether the spark plug is sparking properly.
- Check whether the engine is flooded.
- Check whether there is a carburetor malfunction.
- Confirm whether the spark plug is producing a spark: Remove the spark plug, connect it to the ignition coil, and place the spark plug electrode in contact with a metal part of the machine. Pull the starter rope and observe whether the spark plug produces a spark during starting.
- Check the electrode gap. The correct gap is 0.5â0.7 mm (approximately the thickness of a credit card).
- Clean oil residue and debris from the surface of the spark plug.
- If the engine still does not start after completing the above steps, replace the spark plug with a new one.
- Check whether the high-voltage wire (ignition coil lead) is damaged.
- Remove the spark plug.
- Turn the machine upside down.
- Pull the starter rope.
- Drain the excess fuel from the cylinder.
- Remove the air filter.
- Use an air blower to remove dust or debris from the air filter.
- If it cannot be cleaned or has been used for a long time, replace the air filter.
