NEOTEC New Retractable Garden Hose Reel 65ft 1/2 Inch Wall Mount 180° Swivel with 9 Pattern Nozzle G201220
Key Features

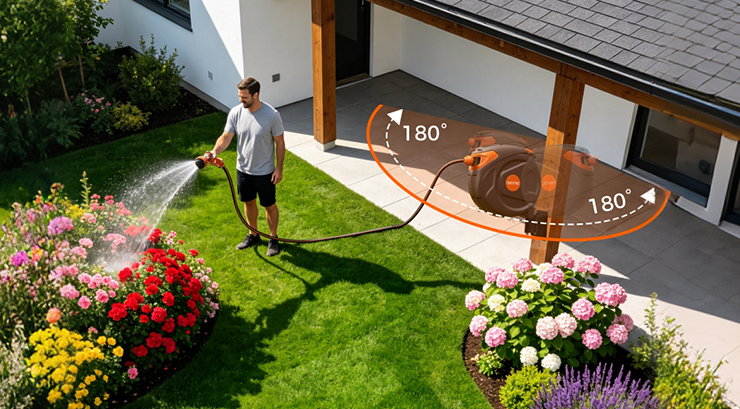

180° Swivel Wall Bracket

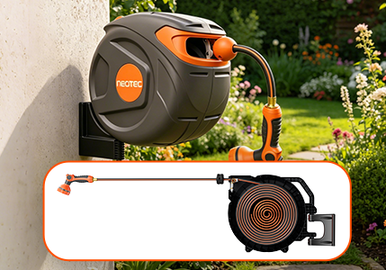

Any Length Position Lock

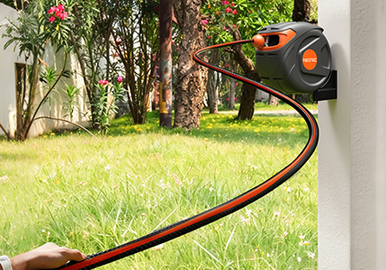

Auto Rewind Anti-Tangle
Upgrade Highlights

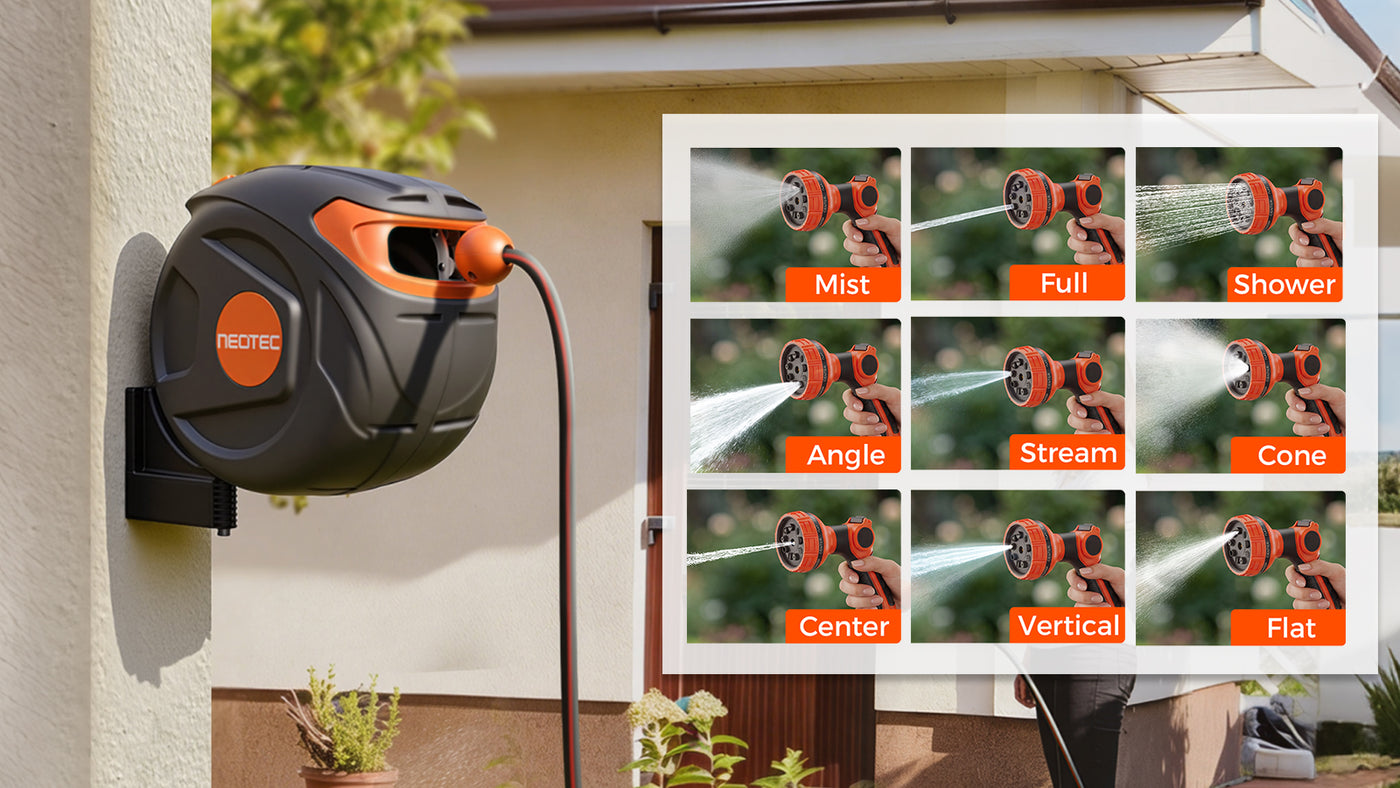

9-Spray Pattern Nozzle Upgrade
9 Adjustable Water Modes, Fit For Seedling Irrigation & High-Pressure Washing

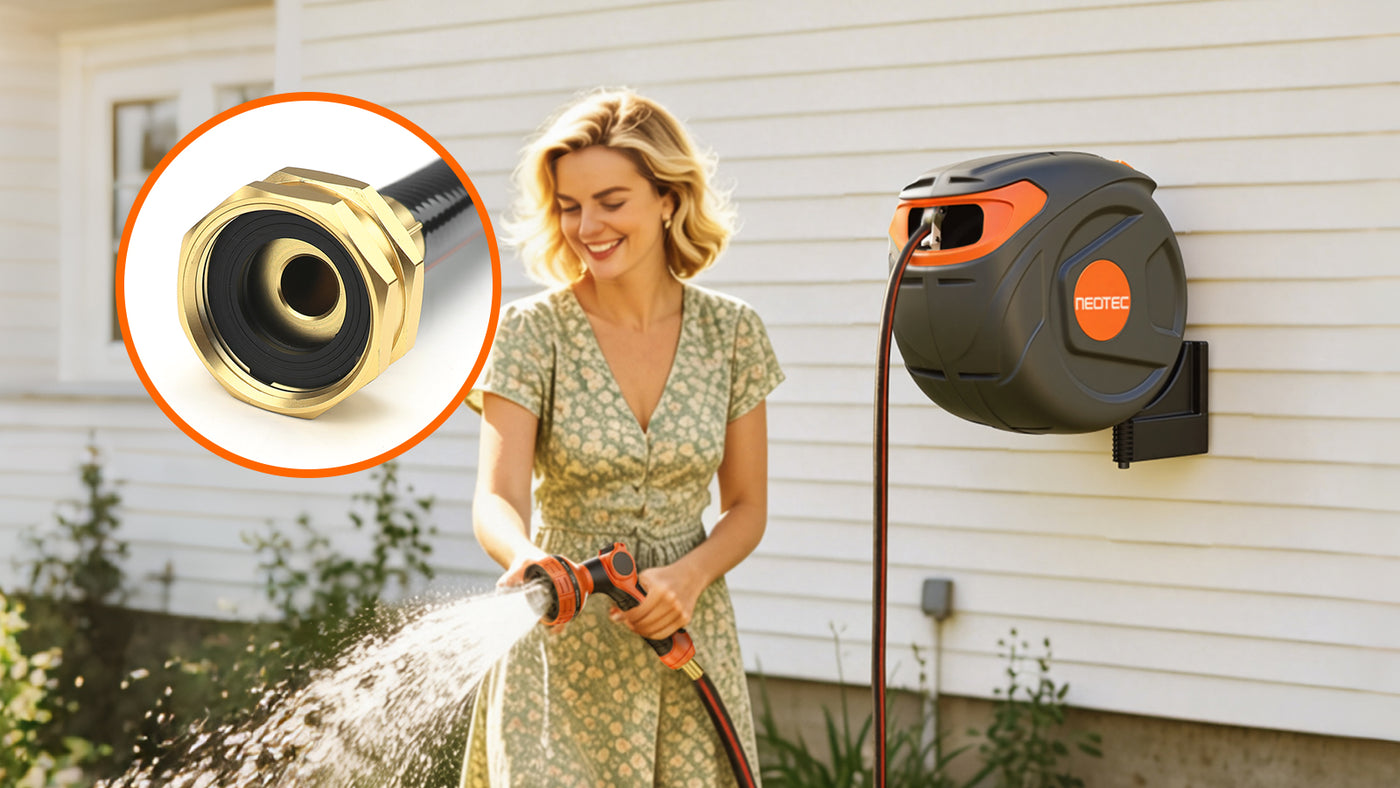

Brass Leakproof Connector Upgrade
Brass Fittings With Reinforced Seal Structure For Zero Water Leakage.

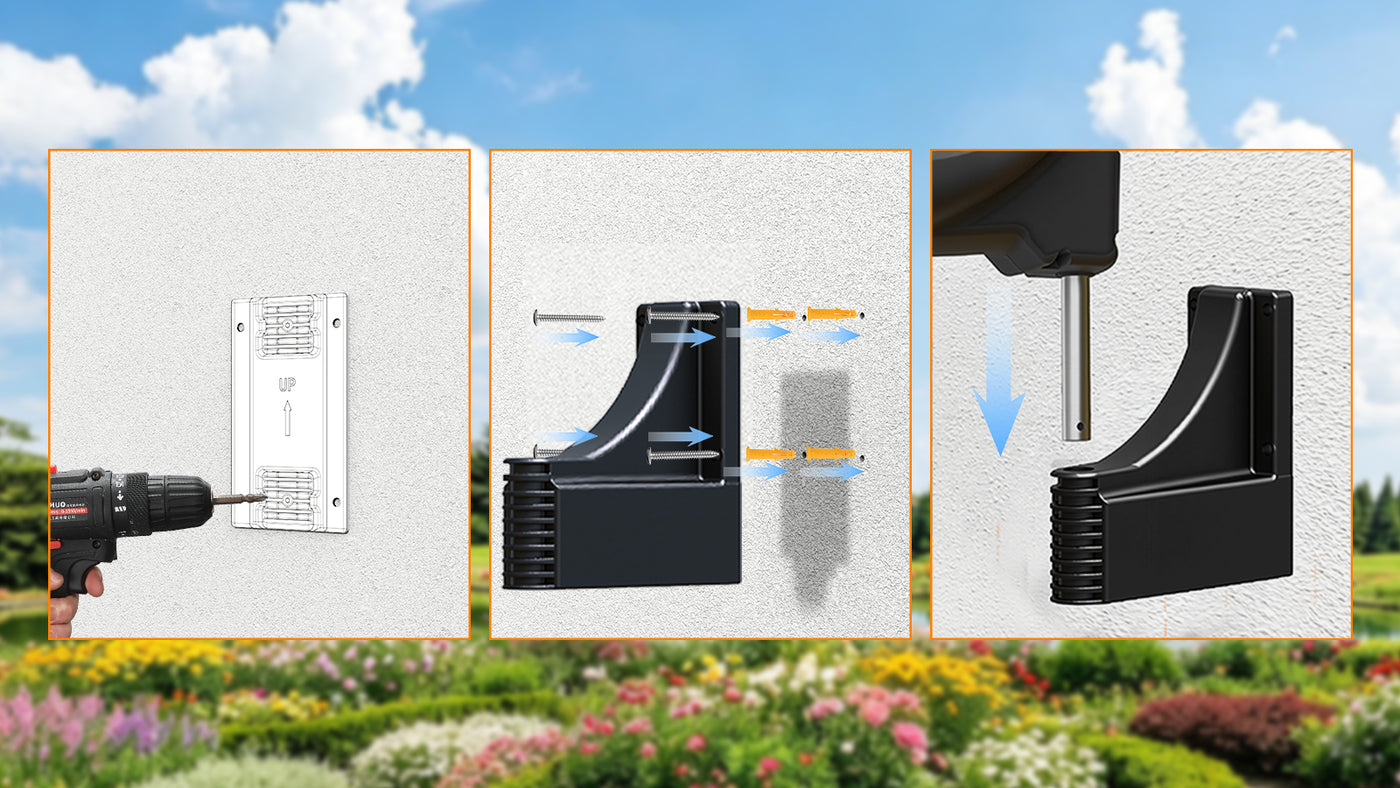

Quick Wall Mount Installation Upgrade
Complete Accessories Enable Fast Mounting On Various Wall Surfaces.

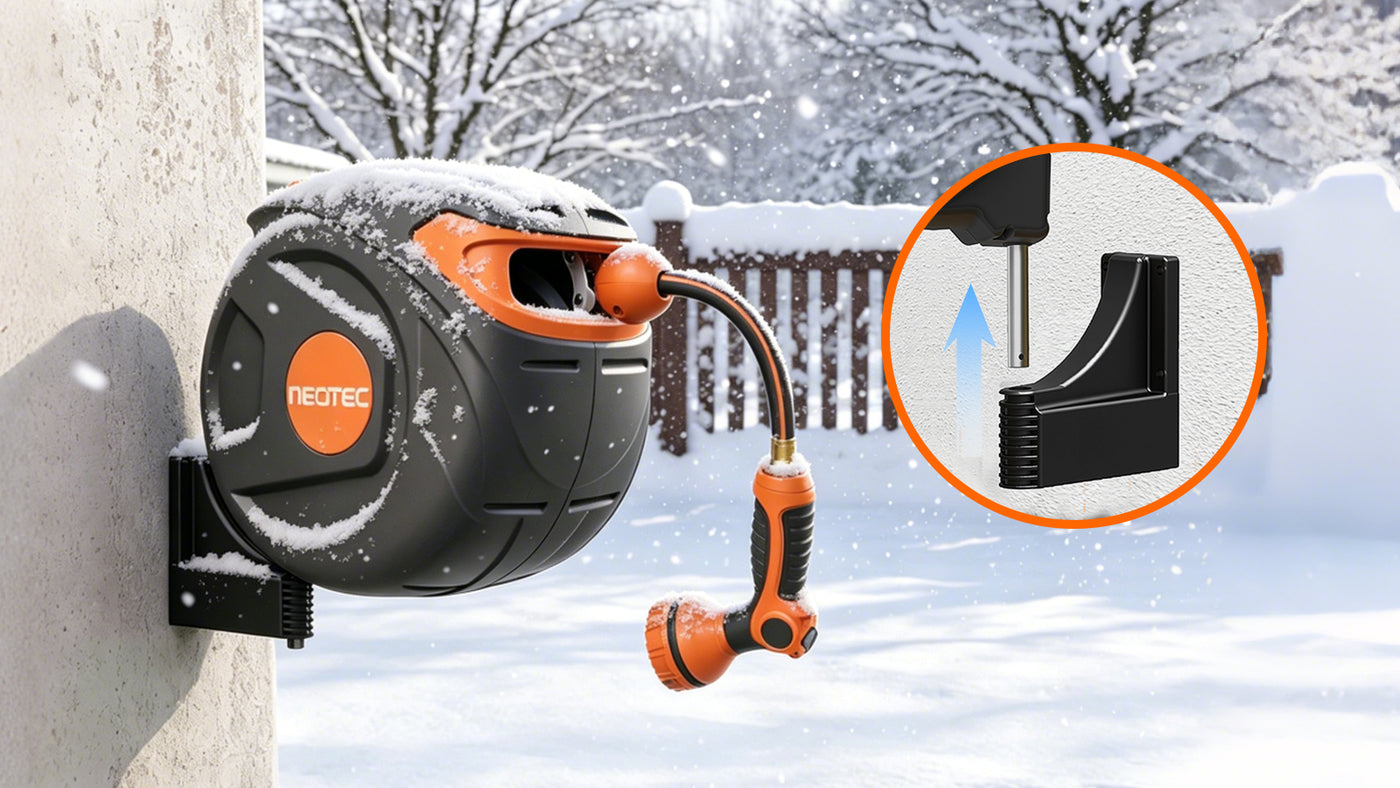

Detachable Main Unit Upgrade
Hose Unit Separates From Bracket For Convenient Winter Storage.
Product Comparison
Discover More Difference59cc
Displacement
56.5cc
Displacement
54.5cc
Displacement
54.5cc
Displacement
2.9kW/ 3.9HP
Max Power
2.6kW/ 3.5HP
Max Power
2.4kW/ 3.2HP
Max Power
2.2kW/ 3.0HP
Max Power
30”/75cm
Max Cutting Diameter
26”/65cm
Max Cutting Diameter
26”/65cm
Max Cutting Diameter
22”/55cm
Max Cutting Diameter
20” , 22” , 24”
Recommended Guide Bar Size
18” , 20” , 22”
Recommended Guide Bar Size
18” , 20” , 22”
Recommended Guide Bar Size
18” , 20”
Recommended Guide Bar Size
7Tx 0.325
Sprocket Type
7Tx 0.325
Sprocket Type
7Tx 0.325
Sprocket Type
7Tx 0.325
Sprocket Type
6 Month Consumer / 3 Month Commercial
Warranty
6 Month Consumer / 3 Month Commercial
Warranty
6 Month Consumer / 3 Month Commercial
Warranty
6 Month Consumer / 3 Month Commercial
Warranty
FAQS
Cold Start
- Add fuel (fuel mixing ratio: 25:1).
- Close the choke. If the machine is equipped with a primer bulb, press it 3–5 times until the bulb is filled with fuel.
- Pull the starter rope 3–5 times.
- After hearing two “coughing” sounds,
- Open the choke.
- Pull the starter rope to start the machine.
Hot Start
- Open the choke.
- Pull the starter rope to start the machine.
The issue may be caused by an incorrect fuel mixture, spark plug problems, or a clogged carburetor.
- Check whether the fuel mixing ratio is 25:1. If not, adjust the fuel mixture to 25:1.
- Check whether the fuel line is bent or blocked.
- Check whether the spark plug is sparking properly.
- Check whether the engine is flooded.
- Check whether there is a carburetor malfunction.
- Confirm whether the spark plug is producing a spark: Remove the spark plug, connect it to the ignition coil, and place the spark plug electrode in contact with a metal part of the machine. Pull the starter rope and observe whether the spark plug produces a spark during starting.
- Check the electrode gap. The correct gap is 0.5–0.7 mm (approximately the thickness of a credit card).
- Clean oil residue and debris from the surface of the spark plug.
- If the engine still does not start after completing the above steps, replace the spark plug with a new one.
- Check whether the high-voltage wire (ignition coil lead) is damaged.
- Remove the spark plug.
- Turn the machine upside down.
- Pull the starter rope.
- Drain the excess fuel from the cylinder.
- Remove the air filter.
- Use an air blower to remove dust or debris from the air filter.
- If it cannot be cleaned or has been used for a long time, replace the air filter.
